    SCAN Passive Vehicle Antenna for Thuraya (60410)
    Add to Wish List Add to Compare

    SCAN Passive Vehicle Antenna for Thuraya (60410)

    US$216.88
    BRAND:
    SCAN ANTENNA
    PART #:
    60410-001
    WARRANTY:
    12 MONTHS
    Stock Status:
    In stock
    AVAILABILITY:
    USUALLY SHIPS IN 3-5 BUSINESS DAYS
    Product Code:
    Scan-Passive-Vehicle-60410
    +
    -
    SCAN Passive Vehicle Antenna for Thuraya (60410)

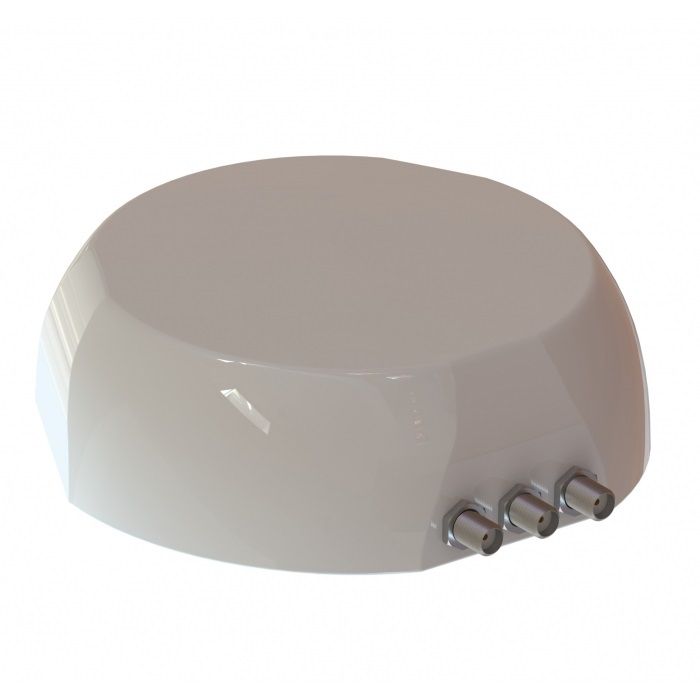

    The SCAN Antenna 60410 is a passive antenna for Thuraya Docking stations. It is compatible with SO, SG and XT handsets, the SM-2500 module and more. It requires no pointing towards satellite and the rugged design ensures a reliable performance in harsh conditions. The radome has a smooth surface and low loss properties.

    ELECTRICAL SPECIFICATIONS:
    FREQUENCY1525 - 1660.5 MHz, 824 - 960 MHz, 1710 - 2170 MHz (Multiband GSM)
    SATELLITE SYSTEMThuraya, GPS
    IMPEDANCE50 ohm
    POLARISATIONLHCP (SAT)
    AXIAL RATIO< 6 dB
    GAIN4 dBic
    LNA GAIN25 dB (GPS)
    NOISE FIGURE1.2 dB (GPS)
    SUPPLY VOLTAGE3.0 - 5.5 V DC (GPS)
    CURRENT CONSUMPTION, AVERAGE20 mA (GPS)
    MECHANICAL SPECIFICATIONS:
    COLORWhite
    HEIGHT36.5 mm
    DIAMETER111 mm
    WEIGHT170 g
    MOUNTINGMagnetic, anti-skid and anhesive tape
    CONNECTOR 1SAT: SMA-female
    CONNECTOR 2GSM: SMA-female
    CONNECTOR 3GPS: SMA-female
    CABLENo cables supplied
    MOUNTING PLACEOn vehicle roof or trunk lid
    ORDERING INFORMATION:
    PART NO.60410
    More Information
    PRODUCT TYPESATELLITE PHONE
    BRANDSCAN ANTENNA
    PART #60410-001
    NETWORKTHURAYA
    USAGE AREAREGIONAL - SEE COVERAGE MAP
    ACCESSORY TYPEANTENNA
    OPERATING TEMPERATURE-20°C to 70°C (-4°F to 158°F)

    Thuraya Coverage Map

    Thuraya Coverage Map

    Thuraya's robust satellite network provides coverage in the most remote locations, ensuring congestion-free satellite communications to keep you connected at all times. From innovative satellite design to the reliability of each Thuraya device and accessory, we provide a truly superior satellite communication solution beyond the boundaries of terrestrial systems and cellular networks.

    The Thuraya network does not cover north or south America.
