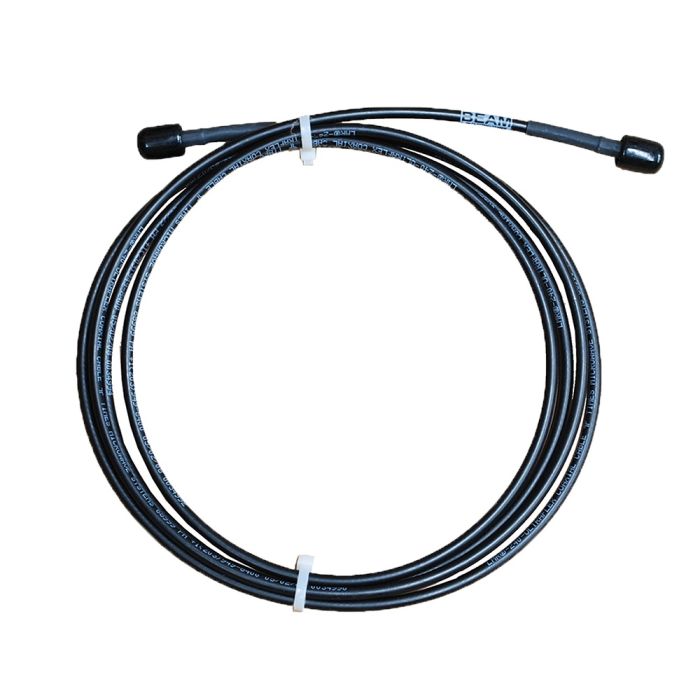

Iridium Beam Passive Antenna Cable Kit - 3m / 9.8ft (RST931)

US$299.00
Overview

Beam RST931 Iridium 3 m (9.8 feet) antenna cable provides a flexible installation option for very compact installations, where a transceiver module is located close to the antenna and is pre-terminated with TNC male connectors.

BRAND:
BEAM
PART #:
RST931
ORIGIN:
Australia
WARRANTY:
12 MONTHS
Stock Status:
In stock
AVAILABILITY:
USUALLY SHIPS IN 3-5 BUSINESS DAYS
Product Code:
Beam-Passive-Cable-RST931

Iridium Beam Passive Antenna Cable Kit - 3m / 9.8ft (RST931)
Beam RST931 Iridium 3 m (9 feet) antenna cable provides a flexible installation option for very compact installations, where a transceiver module is located close to the antenna and is pre-terminated with TNC male connectors.

• Within Iridium's 3dB Loss Specification
• Times Microwave Cable
• TNC Terminated to Connect to Terminal & Antenna
• Fully Tested



Physical

Length m ft
Iridium Coaxial Cable (Passive) 3 9.84
Dimensions mm inches
External Diameter 6.1 0.24
Bend Radius 13.1 0.75
Bend Radius - repeated 63.5 2.5
Weight kg lbs
Cable 0.15 0.33


Connectors

TNC-Male to TNC-Male
More Information
PRODUCT TYPESATELLITE PHONE
BRANDBEAM
PART #RST931
NETWORKIRIDIUM
FEATURESPASSIVE
LENGTH3m (9.8')
WEIGHT0.15 kg (0.33 lbs)
FREQUENCYL BAND (1-2 GHz)
ACCESSORY TYPECABLE
OPERATING TEMPERATURE-40ºC to 85ºC (-40ºF to 185ºF)
