The Beam DriveDOCK Extreme, an Iridium 9575 Extreme dock which is the ideal highly featured docking station for the Iridium 9575 handset that can be used in various maritime and transport applications and considerably extends the functionality of the 9575 handset.

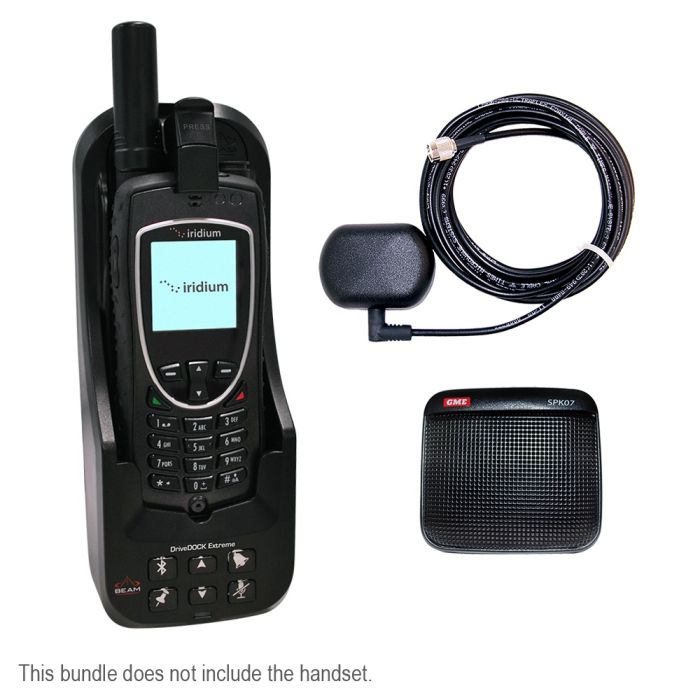

Beam DriveDOCK Extreme Docking Station (EXTRMDD)
BEAM DriveDOCK Extreme hands-free docking solution provides a high quality transport installation for the Iridium Extreme handset. The docking station has in-built echo cancelling and full duplex technologies to provide superior voice quality and professional hands-free or privacy calls for any vehicle or aircraft*.
The Iridium Extreme handset fits securely in the dock, which features USB and serial data connectivity, phone charging and integrated antenna, data and power connection making it possible to keep all antenna cables and power permanently connected to the DriveDOCK ready for use.
The Iridium Extreme handset fits securely in the docking station with an easy click to lock mechanism that can be inserted and removed with a press of a button. It is purposely built to allow you to utilize the SOS emergency button and the ear-piece jack whilst docked.
DriveDOCK Extreme also supports the use of an optional privacy handset for added convenience or the Intelligent Privacy Handset, that replicates the full functionality of the Extreme handset in another location.
* Independent Aeronautical certification MUST be gained prior to installation.
DriveDOCK Extreme CRADLE
- Securely holds Iridium Extreme handset
- Robust design and construction
- Charges Iridium Extreme handset ready for use
- Integrated antenna connection, Iridium & GPS
- Integrated USB connectivity
- Robust design and construction
- Charges Iridium Extreme handset ready for use
- Integrated antenna connection, Iridium & GPS
- Integrated USB connectivity
HANDSFREE MODE
. In-built echo cancelling
. Full duplex technology
. Superior voice quality
. Full duplex technology
. Superior voice quality
TRACKING/GPS
. Triggering of Quick GPS
. Interfaces to BEAM?s MyBuddy Extreme
. Interfaces to BEAM?s MyBuddy Extreme
PANIC/ALERTS
. Option of additional wired alert buttons
. Interfaces to BEAM?s MyBuddy Extreme
. Supports Iridium Extreme SOS
. Interfaces to BEAM?s MyBuddy Extreme
. Supports Iridium Extreme SOS
INTEGRATED BLUETOOTH?
. Bluetooth? in-built in cradle
. Supports Bluetooth? voice connectivity
. Supports Bluetooth? voice connectivity
IN-BUILT RINGER
. In-built ringer for enhanced ring indication
VOICE, DATA, SMS, SBD
. Supports all Iridium voice, data, SMS & SBD services
PRIVACY HANDSET (OPTIONAL)
. Supports optional BEAM Privacy handset
. Auto answer when taken out of cup
. Switches between handset and handsfree modes
. Auto answer when taken out of cup
. Switches between handset and handsfree modes
INTELLIGENT HANDSET (OPTIONAL)
. Supports optional Intelligent handset
INSTALLATION
. Supports 9 - 32V DC power input
. Flexible installation via universal mount
. Antenna, mic and speaker installed in a convenient location
. Flexible installation via universal mount
. Antenna, mic and speaker installed in a convenient location
QUALITY
. Professional industrial design
. 2 year replacement guarantee for peace of mind
. 100% factory tested
. Fully certified, Iridium, RoHS, CE, AS/EN60950
. 2 year replacement guarantee for peace of mind
. 100% factory tested
. Fully certified, Iridium, RoHS, CE, AS/EN60950
| PRODUCT TYPE | SATELLITE PHONE |
|---|---|
| USE TYPE | MARITIME, VEHICULAR |
| BRAND | BEAM |
| PART # | EXTRMDD-SB |
| NETWORK | IRIDIUM |
| USAGE AREA | 100% GLOBAL |
| FEATURES | PHONE, TEXT MESSAGING |
| HEIGHT | 212 mm (8,3 pouces) |
| WIDTH | 83 mm (3.3 inches) |
| DEPTH | 76 mm (3 pouces) |
| WEIGHT | 0,48 kg (1,1 lb) |
| FREQUENCY | L BAND (1-2 GHz) |
| COMPATIBLE WITH | IRIDIUM 9575 EXTREME |
| ACCESSORY TYPE | DOCKING STATION |
| OPERATING TEMPERATURE | -30°C to 70°C (-22°F to 158°F) |
| STORAGE TEMPERATURE | -35°C to 85°C (-31°F to 185°F) |
| CERTIFICATIONS | IRIDIUM CERTIFIED, EMC COMPLIANCE, CE COMPLIANCE, RoHS, ELECTRICAL SAFETY, C-TICK |
